Delhi QR ticketing

Client: Ridlr
Year: 2018
Role: Industrial designer
Status: In market — Delhi Metro Airport line

Render of a row of Delhi Metro gates with blue scanner housings and red flaps

Render of the gate array from the front

Render of the gate array from above

CAD of the blue scanner housing sitting over the curved gate edge

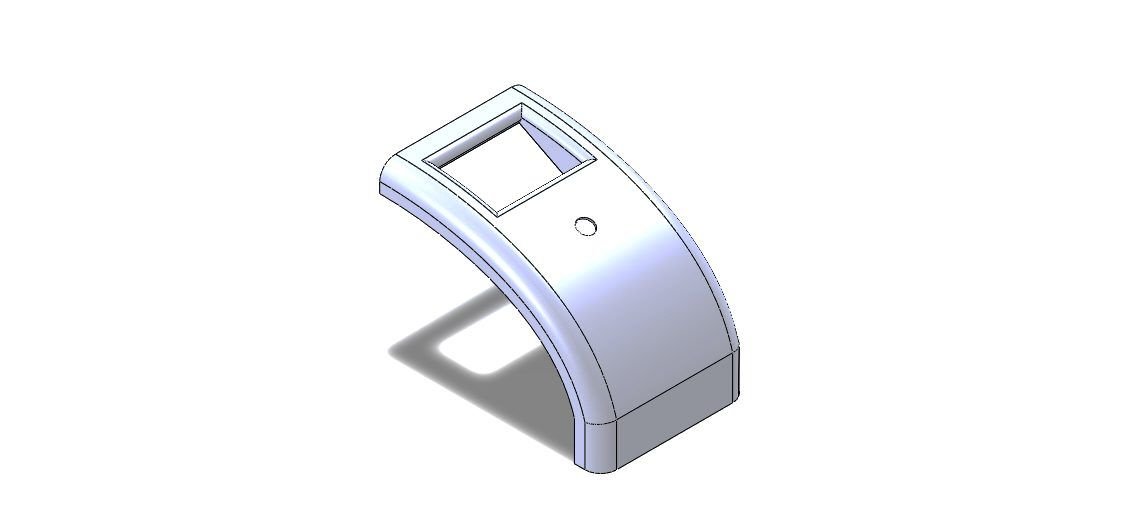

Render of the curved front panel with the scanner cut-out

Render of a pair of Delhi Metro gates with red flaps and blue scanner housings

Four blue vacuum-cast scanner housings lined up

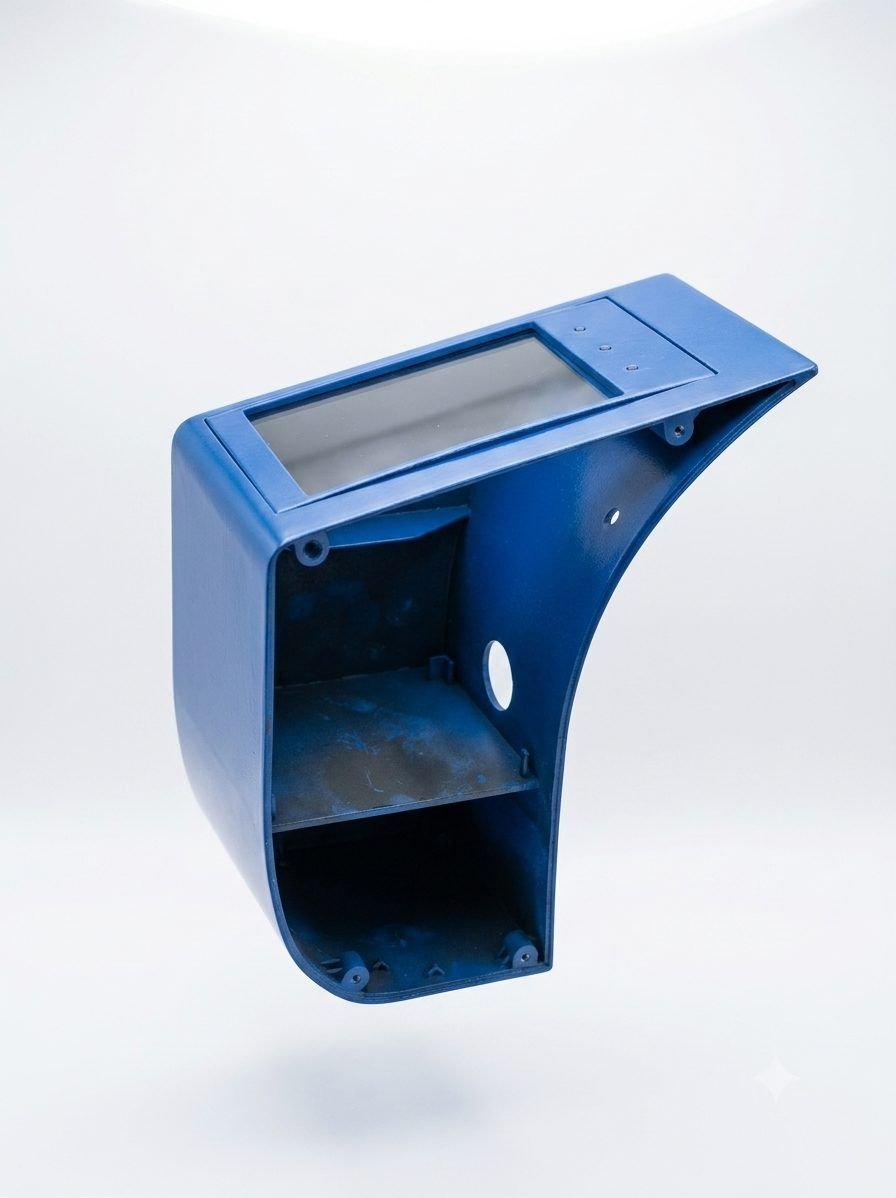

A single blue housing on a bracket

Open housing with the scanner, LED indicators and Raspberry Pi controller wired inside

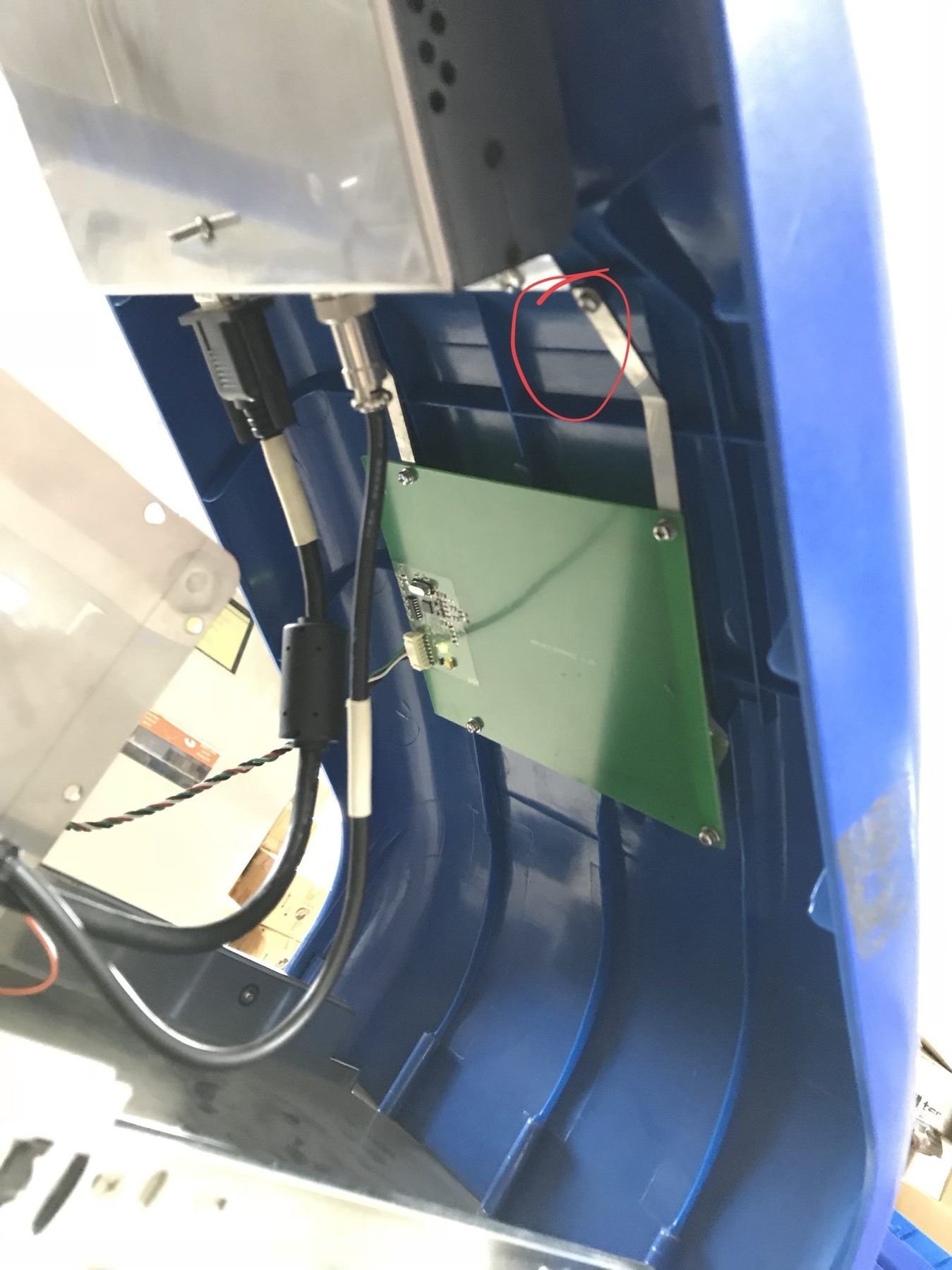

A technician fitting the housing on a gate inside the station

Delhi Metro gates with the housings installed, taped off during commissioning

Render of a hand presenting a paper QR ticket to the gate-mounted scanner

Exploded CAD of the card-and-QR module in teal

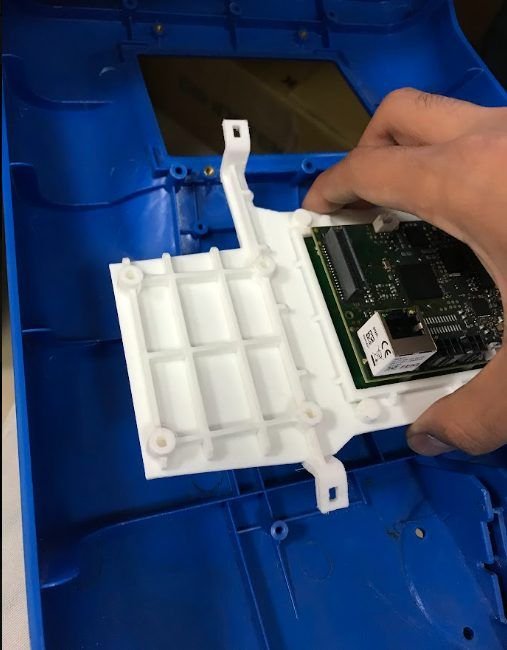

Hands fitting the white module into the blue gate housing

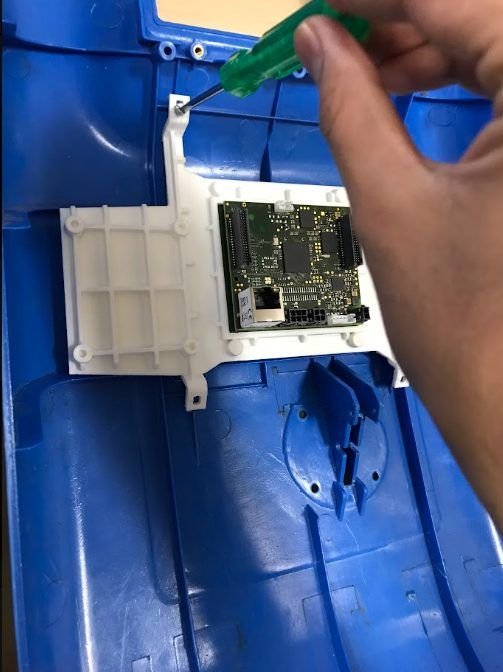

Screwing the module in place

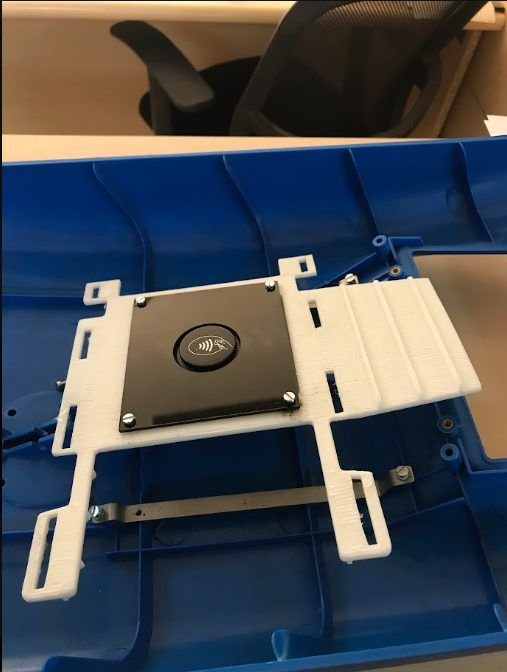

The module seated inside the housing
